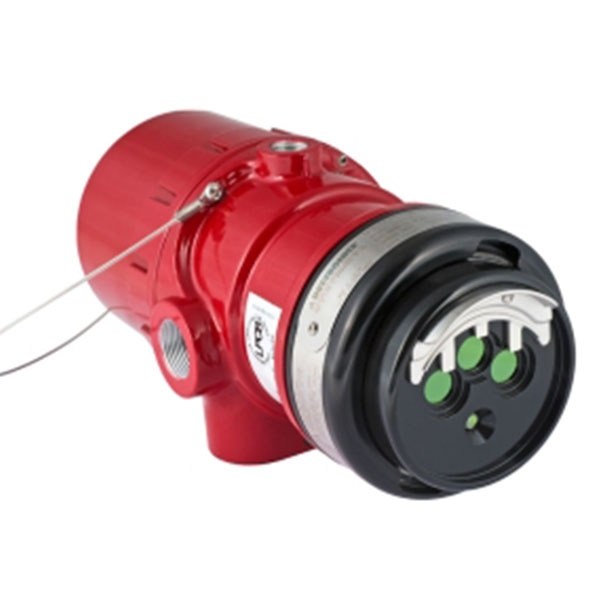

X3301 Multispectrum IR Flame Detector

With multiple sensitivity levels and output options, the X3301 flame detector provides high levels of protection for a wide range of hazardous applications and is a proven performer able to reach distances where detectors may have previously gone blind.

The X3301 contains three IR sensors with their associated signal processing circuitry. The standard output configuration includes fire alarm, fault and auxiliary relays, with an isolated 0 to 20 mA output model with optional HART communication.

The X3301 establishes the global benchmark in fast multi-fuel fire detection performance while combining an exceptional level of false alarm rejection. The detector also provides continuous protection without the worry of maintenance and failure.

Already a well-established and leading flame detector in fire protection, the X3301 is now significantly improved with certification for:

• Greatest Field-Of-View (FOV) protection
• Longest detection range
• Third-party approval for detecting the greatest number of fuel types

Easy to Install and Maintain

• Multiple sensitivity modes ideal for specific applications and excellent false alarm rejection
• Control room interface, including 0-20 mA, Relay, Modbus, HART, EQP, FDT/DTM
• Automatic fail-safe checks every 60 seconds with the Optical Integrity (oi®) function – verifies device’s optic operation with no test lamp required
• Heated optics for maximum performance in adverse environments and reduced maintenance costs
• Data logger for event time and date stamping to create a detailed analysis of faults and alarms
• Field replaceable electronics module reduces labor and equipment costs
• Easy-to-Access diagnostics
• Highly Visible LED: Local alarm and simple fault identification
• Large event and calibration logs (1,000 and 100)
• HART handheld and AMS capable

Best Protection

• Enhanced optical FOV – 100% true FOV for methane, providing the lowest cost of coverage
• Automatic Optical Integrity (oi®) check for each sensor to ensure fail-safe detection
• Industry-leading third-party certification to 81 meters (265 feet) on-axis for n-heptane (a greater than 25 percent improvement)
• Industry leader of global third-party performance approvals
• Performance certified to FM 3260 with the widest range of fuels such as n-heptane, gasoline, kerosene, isopropanol, diesel, methanol, xylene, toluene, methane, propane, ethylene, butane, Jet-A, JP-5, JP-8, and Class A (paper)
• Fastest response time and widest level of coverage across all supported fuel types — exceeding the NFPA 72 requirements for on- and off-axis detection (FOV)
• Performance certified to EN54-10
• Explosion-proof for Class I, Div. 1, Groups B, C, D and Class II, Div. 2, Group E, F, G per FM 3615, CSA 22.2
• Compliance to ATEX/IECEx 60079-31: 2009, Ex d, Ex d e models available to meet European standards and electrical code conformance
• SIL 2 Capable certification (exida) ready for SIS setup
• DNV/MED Type approval for offshore
• 5-year warranty

Applications

The detector provides superior performance in applications that are at the extremes, and where background infrared radiation is a normal condition:

• Hangars
• Offshore production platforms
• Offshore production ships
• Refineries
• Production facilities
• Loading racks
• Compressor stations
• Turbine enclosures
• Airport water curtains
• Automotive Painting
• LNG/LPG
• Gas Separation Plants
• Warehousing
• Marine
